F: 140MM | W: 27.5
The Clockwork EVO delivers the benchmark Orange Bikes ride with dependable performance.
The Clockwork EVO is an EVO in every sense of the word, designed to be progressive and push boundries of whats acceptable of a "do it all" hardtail. A fast, responsive chasis paired with geometry that encourages speed on the trail whether it points up or down. In essence a ride with an enduro temprement with a trail bike physique.
For the new 2023 model, we have pushed the geometry a little further with a 64.5° head angle and 75.5° seatangle, setting the rider more into the middle of the bike, but retaining the 'pop' we like from an Orange trail hardtail. The chainstays now feature a one piece yoke to add strength and tyre/mud clearance, and we finish up with neat CNCed cable grommets for the internally run gear cables and and brake hoses.
If you're looking for a fast, lean and wild riding trail hardtail this is the bike for you.
Please note: Prices and Specifications are liable to change without notice.
| 6061-T6 Custom Butted Aluminium | ||||

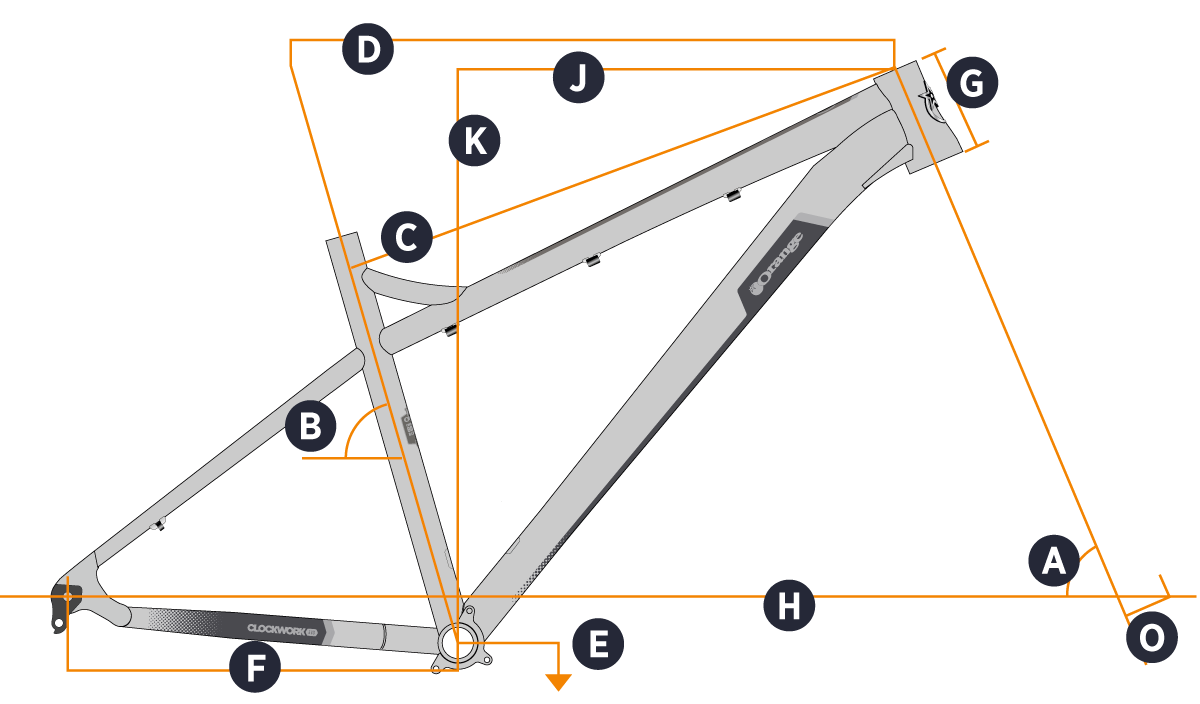

| Frame Size | S | M | L | XL |
| Seat Tube Length | 15" | 17" | 18" | 19" |
| A. Head Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| B. Seat Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| C. Top Tube | 619 | 625 | 638 | 654 |
| D. Effective TT | 596 | 619 | 641 | 662 |
| E. BB Height (axle diff) | -58 | -58 | -58 | -58 |
| E. BB Height (from ground) | 296 | 296 | 296 | 296 |
| F. Chainstay | 425 | 425 | 425 | 425 |
| G. Head Tube | 110 | 120 | 130 | 135 |
| H. Wheelbase | 1167 | 1191 | 1215 | 1237 |
| J. Reach | 435 | 455 | 475 | 495 |
| K. Stack | 624 | 633 | 642 | 647 |
| O. Fork Offset | 37 | 37 | 37 | 37 |
| Stem Length | 50 | 50 | 50 | 50 |
| Standover | 658 | 676 | 694 | 730 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
| fork travel | |||||||||
|
|||||||||
| Rear Hub | 12 x 148 mm Boost | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seat Clamp Ø | 34.9 mm | ||||||||
| BB Shell | 73mm ISCG05 | ||||||||
| 1.1/8" Headset | Upper: ZS44/28.6 Lower: ZS56/40 |
||||||||
| Downhill | ||
| Freeride | ||
| Enduro | ||
| All-Mountain | ||
| Trail | ||
| XC Racing | ||
| Bike0Packing | ||
| Gravel |
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
We think the best way to find out what an Orange Bike really has to offer is to ride one. So don't just take our word for it, get out there and give one a go.
Sadly it looks like none of our dealers have this model in stock as a demo bike. However, you can find your nearest dealer and they can request one to be sent to them from our demo fleet.
Prices and Specifications are liable to change without notice.
