Introducing the brand new Orange Satsuma. A smaller version of out MX wheeled Switch 6 no hold barred model with no compromises built for younger riders
We often see that younger or smaller riders are short changed with the bikes that are avialble to them, That's not fair! So we did something about it.
This is a resized, full-on performance model for those riders that want to progress their riding from a young age. It has all the features that make this a proper Orange bike.
Featuring Orange's aggressive bang-up-to-date trail geometry just like its bigger siblings mean that the Satsuma has an exhilarating ride on any trail. With 140mm front and 130mm rear suspension travel, this is effectivly a big travel mixed wheel bike with its 27.5 front and 26 rear wheels, this bike is a joy to ride without being too much of a handful.
The frame also doesn't skimp on features, with it's own S.A.F.E. storage compartment and the latest trunnion shock mounting to ensure the single pivot suspension feels plush and bottomless.
If you've got a small sized shredder in your life then it would be hard to pick a better bike to bring on a rider's trail skills.
Please note: Prices and Specifications are liable to change without notice.
| Monocoque/6061-T6 Custom Butted Aluminium tubing | |
| Frame Size | One Size |
| Seat Tube Length | 14" |

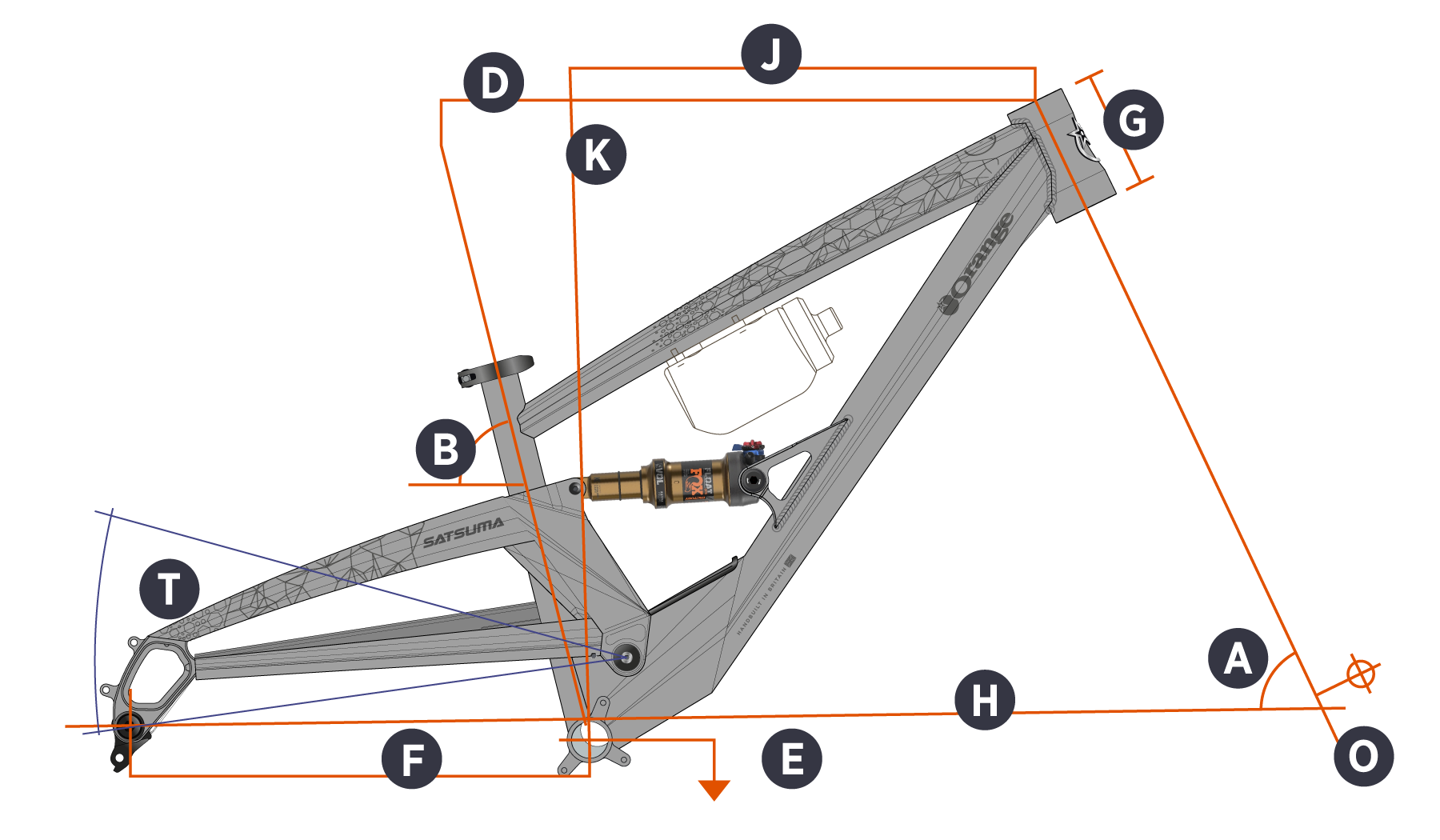

| A. Head Angle | 64° |
| B. Seat Angle | 76° |
| D. Top Tube (effective) | 557 |
| E. BB Height (from ground) | 326 |
| BB height (from axles) | -12 |
| F. Chainstay | 425 |
| G. Head Tube | 110 |
| H. Wheel base | 1151 |
| J. Reach | 410 |
| K. Stack | 589 |
| O. Fork Offset | 37 |
| T. Rear Travel | 130 |
| Standover | 646 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with a 700mm Ø front and 675mm rear tyre. | |
| fork travel | |||||||||
|
|||||||||
| Shock Length | 165 x 45 mm | ||||||||
| Rear Hub | 148 x 12 mm | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: ZS56/40 |
||||||||
| Downhill | ||
| Trail | ||
| Enduro |
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
We think the best way to find out what an Orange Bike really has to offer is to ride one. So don't just take our word for it, get out there and give one a go.
Sadly it looks like none of our dealers have this model in stock as a demo bike. However, you can find your nearest dealer and they can request one to be sent to them from our demo fleet.
Prices and Specifications are liable to change without notice.
