F: 150MM | W: 27.5

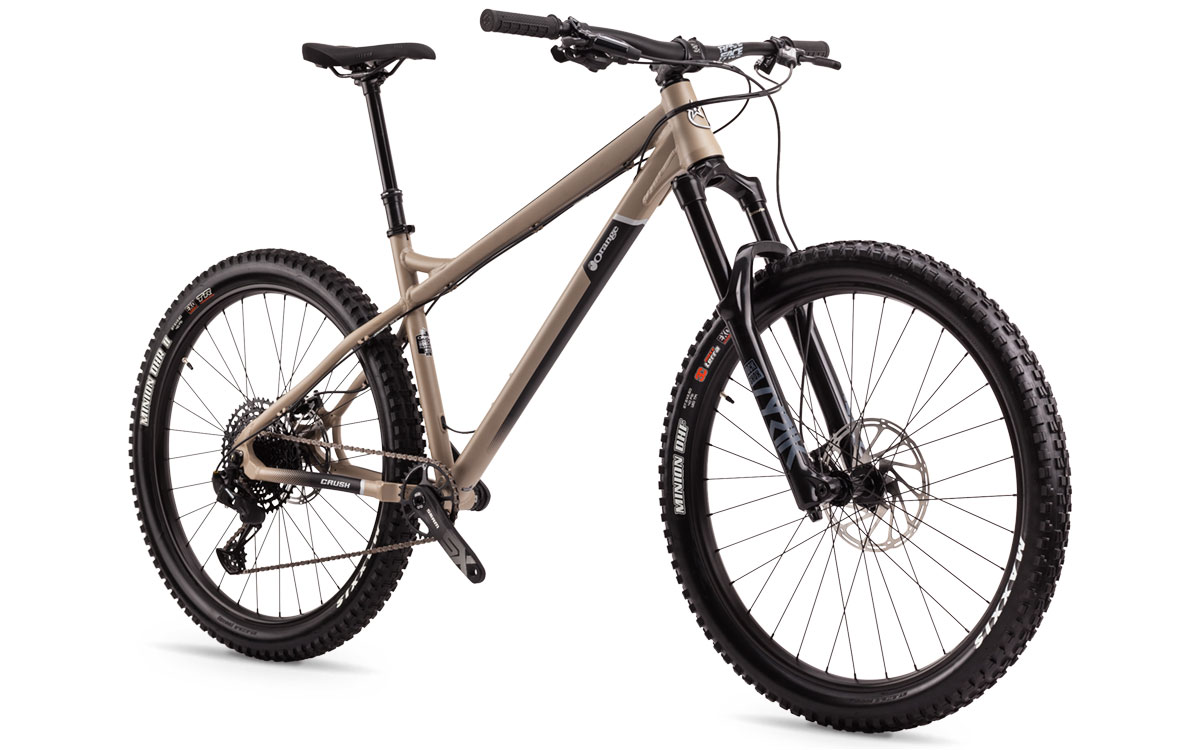

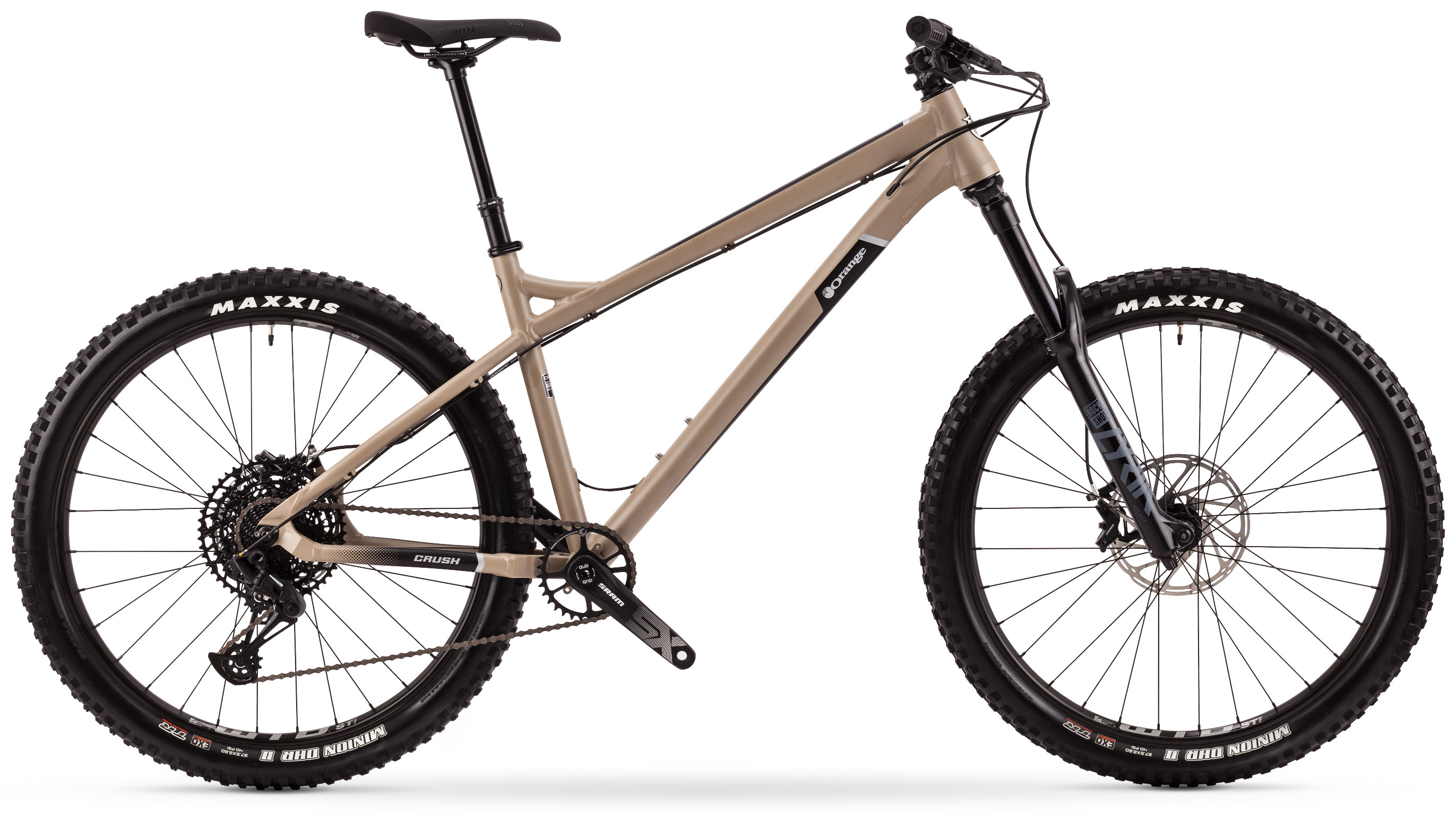

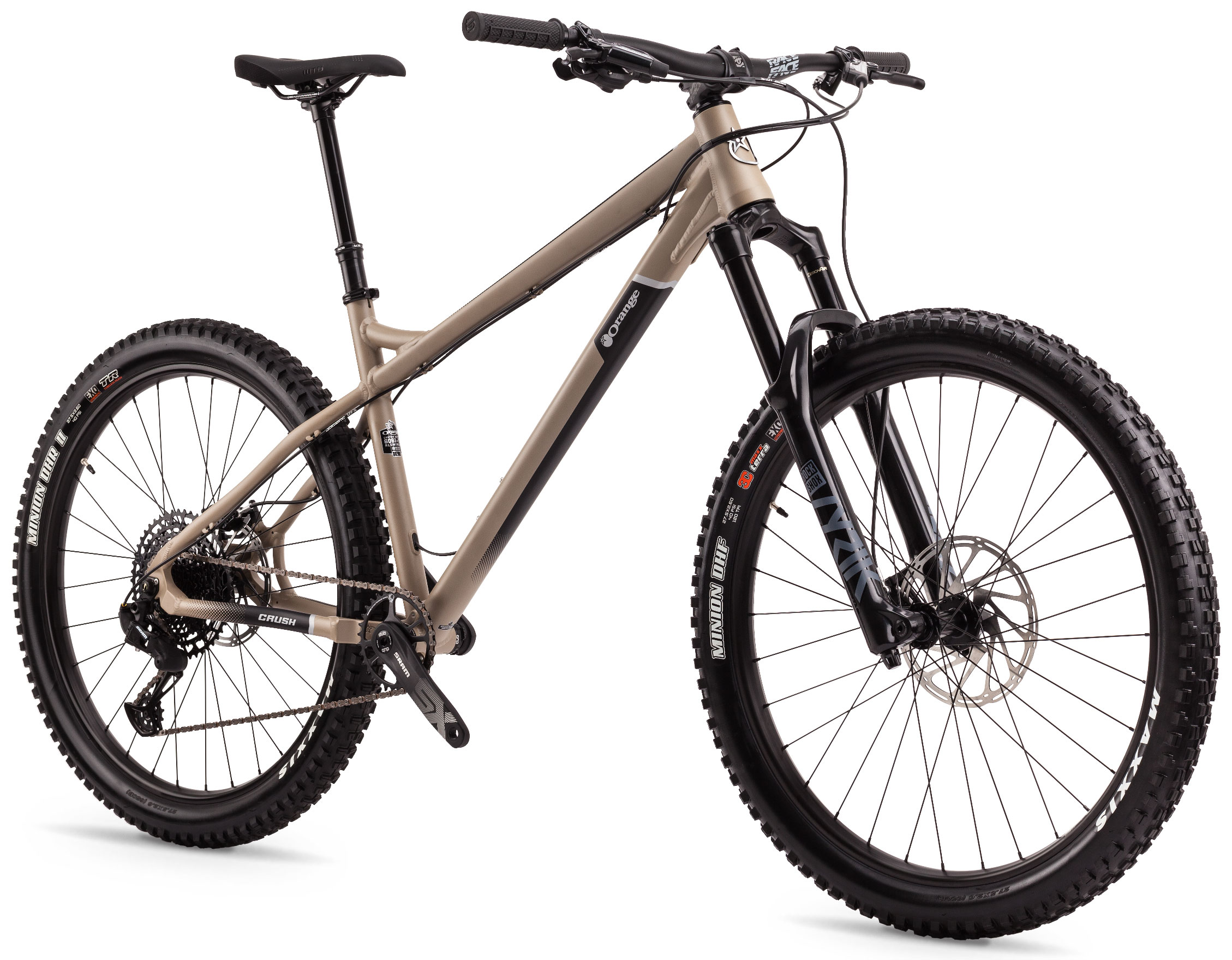

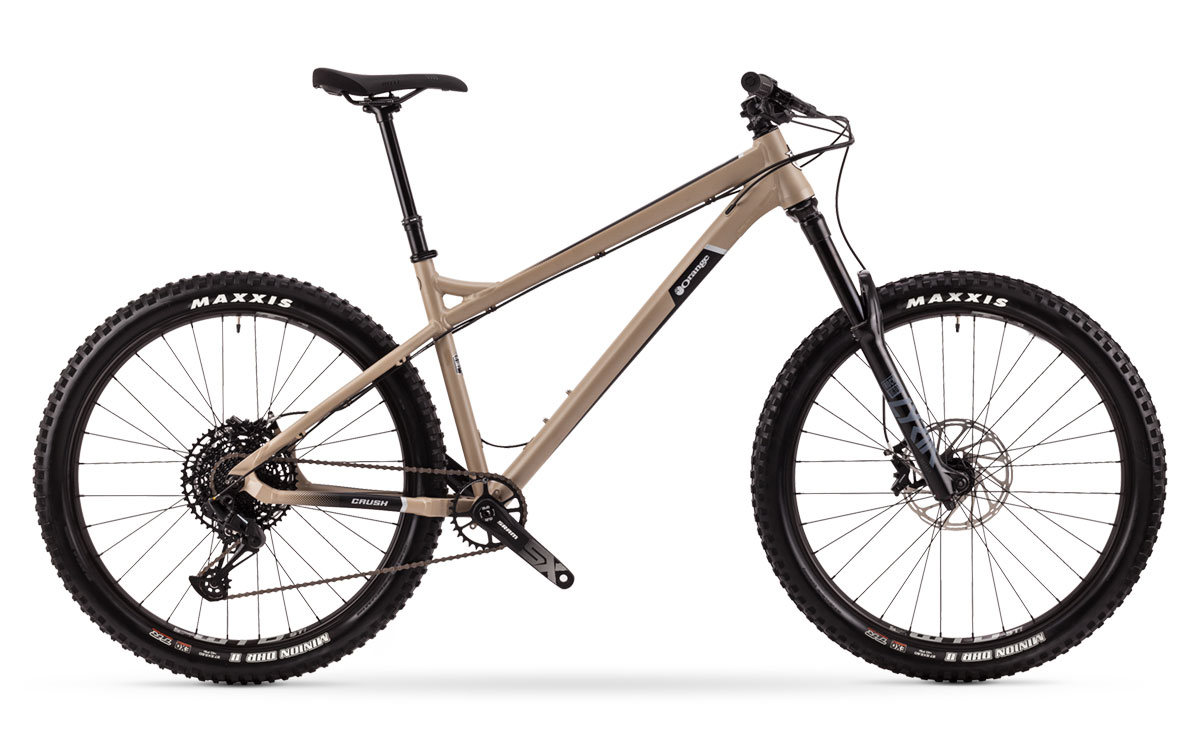

When it comes to swift but gnarly hardtails the Orange Crush line-up is the benchmark others aim for. The original aluminium hardcore hardtail gets a 2022 tune-up to keep it ahead of the game. The frame has gone through a couple of geometry adjustments and a few construction refinements. First, and most obvious, is the new one-piece chainstay yoke. It is forged for maximum toughness and provides improved lateral rigidity for pedalling performance, and leaves plenty of clearance for larger tyres, while giving the chainring plenty of space to breathe in muddy conditions.
The new frame features a tapered headtube, giving us more weld area to add strength and provide more support for the lower headset bearing. Where others skimp on the bottom bracket shell, we belive the extra strength benefits of a 73mm width in this area pays back big-time of a hardtail that gets the thrashing we know a typical Crush will get.
For the new frame's geometry we've pulled things forward (seat-tube 75.5°) to make the ride a little more aggressive, slackened the front-end (headangle 63.5° and 64.5° on the Crush 29) and stretched the wheelbase for stability, while keeping the reach roomy (480mm on a size Large). Coupled with the reduced offset forks we now spec, the rider's weight pitches perfectly in the attack position for more balanced weight distribution and let the front wheel find grip and prevent front end wash-out. That's not happening here - getting that front tyre biting in and letting the bike flow is what the Crush is all about.
There are plenty more details to admire on the new frame; a strong and secure bolt-through rear axle, new cnc-ed cable grommets that not only look great, but keep things tight when everything else around you is getting loose. Some neat new gusseting around the seat-stays add strength and confidence.
This is one of the most significant updates to the Crush hardtail platform in years, in testing we've fallen in love with it all over again. It's not all about bouncy bikes, sometimes you just have to take the fight to the trail, and the new Crush takes it to another level.
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
| 6061-T6 Custom Butted OS Aluminium Tube | ||||
| Frame Size | S | M | L | XL |
| Seat Tube Length | 15" | 17" | 18" | 19" |
| A. Head Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| B. Seat Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| C. Top Tube | 623 | 633 | 649 | 666 |
| D. Effective TT | 602 | 625 | 647 | 669 |
| E. BB Height (axle diff) | -58 | -58 | -58 | -58 |
| E. BB Height (from ground) | 303 | 303 | 303 | 303 |
| F. Chainstay | 430 | 430 | 430 | 430 |
| G. Head Tube | 110 | 120 | 130 | 140 |
| H. Wheelbase | 1191 | 1215 | 1240 | 1264 |
| J. Reach | 440 | 460 | 480 | 500 |
| K. Stack | 628 | 637 | 645 | 654 |
| O. Fork Offset | 37 | 37 | 37 | 37 |
| Standover | 650 | 672 | 703 | 736 |
| Stem Length | 50 | 50 | 50 | 50 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 718 mm Ø tyre. | ||||
| fork travel | |||||||||
|
|||||||||
| Fork Offset | 37 mm | ||||||||
| Rear Hub | 12 x 148 mm Boost | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| BB Shell | 73mm ISCG 05 | ||||||||
| Tapered Headset | Upper: ZS44/28.6 Lower: ZS56/40 |
||||||||
| Downhill | ||
| Freeride | ||
| Enduro | ||
| All Mountain | ||
| Trail | ||
| XC Racing | ||
| Bike Packing | ||
| Gravel |
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
The Pro build we tested represents excellent value for money with fantastic forks, brakes, tyres and drive train so you can shred the trails straight out of the box.
Enduro MTBProper limit pushing, guaranteed good time machine with well sorted spec for the cash.
What Mountain Bike MagazineNo nonsense hardtail with a soft side.
MBRIt is the perfect trail hardtail
MBR MagazineBuckle up, you’re in for the ride of your life!
What Mountain Bike MagazineOrange's trail-taming bruiser proves that a hardtail can handle seriously rough lines with ease
MBUK March 2015Prices and Specifications are liable to change without notice.
Prices and Specifications are liable to change without notice.
