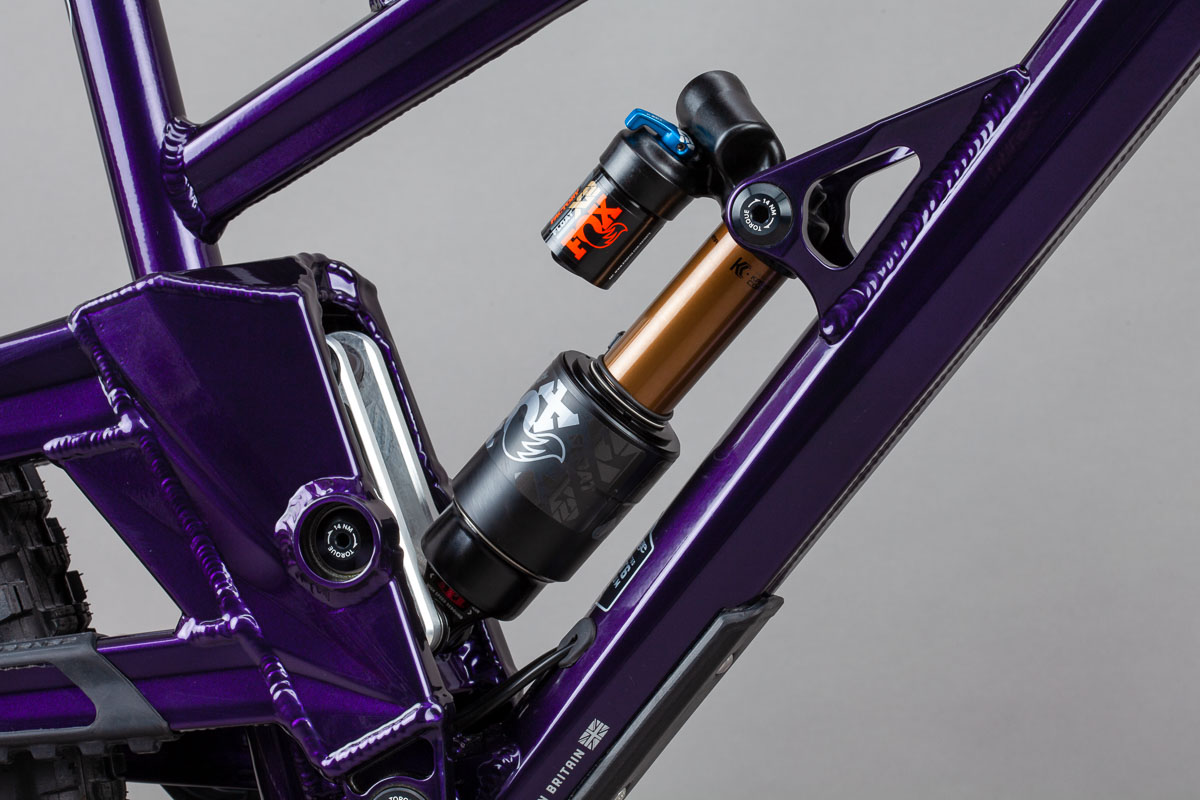

The Strange power link

The lynchpin of both the Stage 7 and Switch 7 is our STRANGE power link. STRANGE (Special Technology RANGE) has been responsible for numerous projects, from prototype frames to general components like grips, for a large proportion of Orange’s existence. It forms a huge part of our development process and has seen some pretty incredible products over the years.

The STRANGE power link allows us to have a considerably more progressive shock curve than we have used previously.

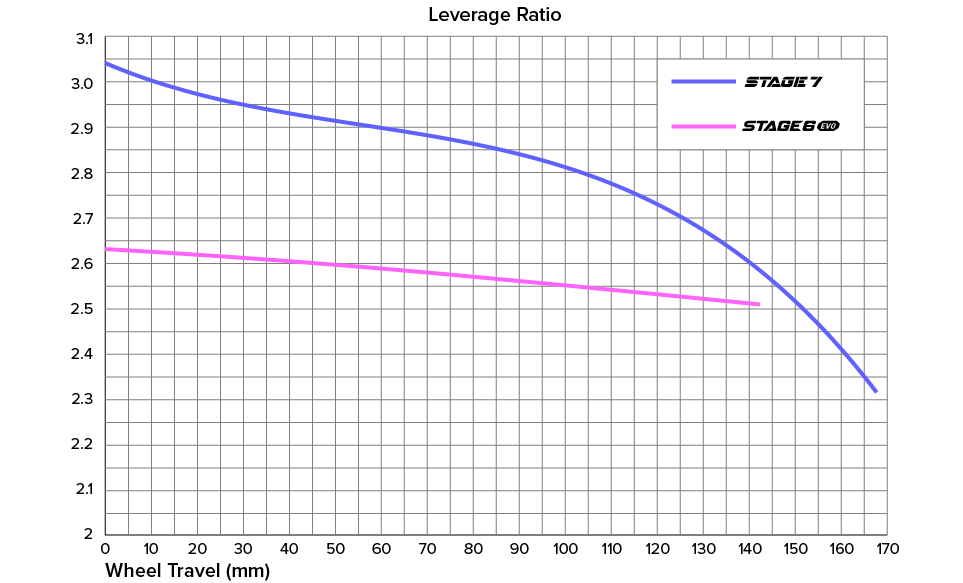

Stage 7 Progression Curve

It’s this shock curve which adds to the truly bottomless feeling that the Stage 7 delivers, but also allows the use of both high-volume air cans or coil shocks. Through the rear shock’s travel, the leverage ratio falls from 2.85 to 2.10. Looking at shock force, this means the real working progression is 36%. The curve was developed so it maintains the fun direct feel that Orange bikes have become famous for while adding the big travel requirements of a very progressive platform.

Trunnion mounted rear shock

The Stage 7 is designed with a link-driven 205x60 trunnion shock, mounted low in the frame helping to lower the bike's centre of gravity and allow for a more neutral weight distribution whilst riding. A trunnion mounted shock in our factory spec runs on a full complement of bearings instead of bushings, both the trunnion mount and lower eyelet, along with all the frame pivots run on cartridge bearings allowing us to achieve as low as possible break away force, providing incredible sensitivity to the initial part of the shock's stroke.

Stage 7 Pivot Components

The Orange Factory Racing riders asked to have an option to increase the bike's bottom bracket height, we’ve done this using an additional pair of “dog bone links” (Available in the future)  which increase the bikes BB height by 5mm with only a half-degree steepening of the head angle, giving the rider the choice when the terrain demands it without adversely affecting the steering geometry.

Throughout the design process we were conscious of our reputation for low maintenance bikes. We made every effort to conceal the majority of our bearings within the front of the swingarm, out of harm's way and safe from jet-washers.

Bikes will come with a 5 year bearing warranty for the original owner and any original owners outside of that period will receive heavily subsidised pricing.

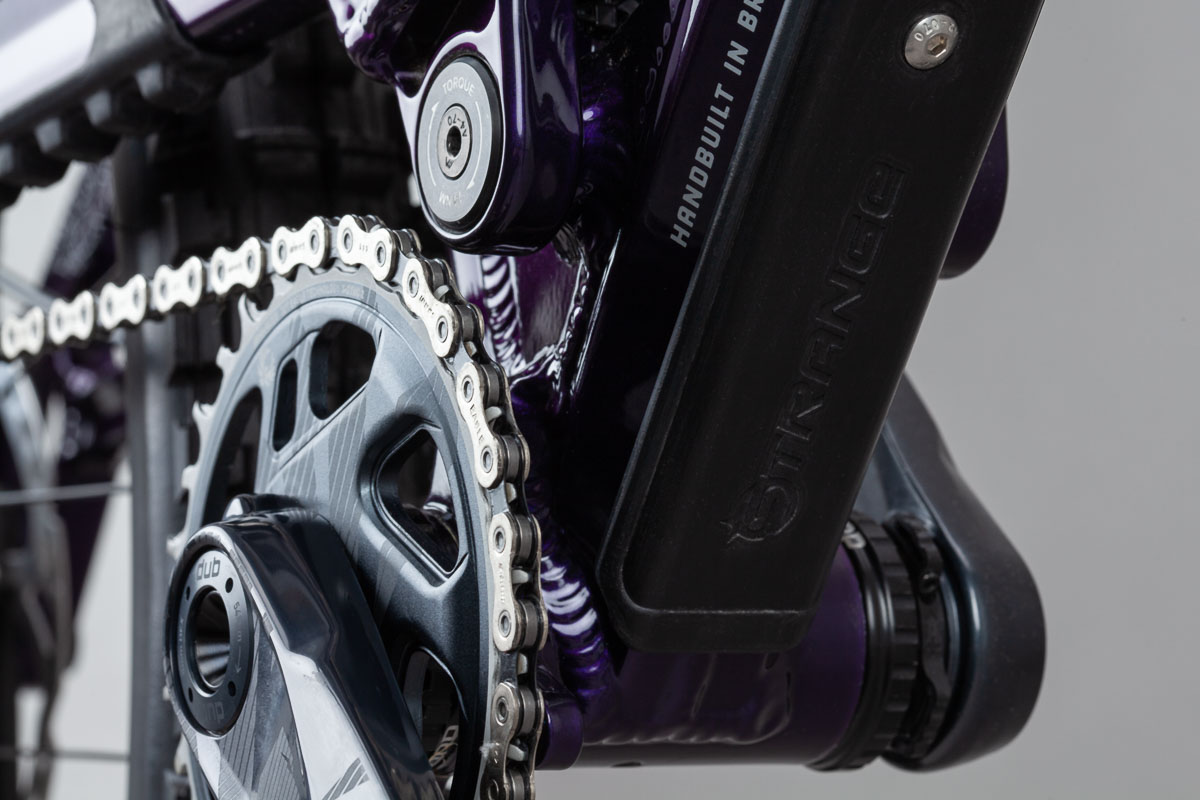

Frame Protection

The icing on the cake is our new chainstay and downtube protectors. These keep your pride and joy looking sharper for longer, help dampen chain slap, impact from stones and are the final details on a bike that has seen an incredible amount of development.
