F: 150MM | R: 140MM | W: 29
“Hair raisingly fast, with well-balanced handling” was the brief. We reckon the Stage 6 Evo is the bike to raise the hairs on the back of your neck before setting you straight back to cool, calm and collected. If you love the feeling of dropping into a fast trail with the bike accelerating beneath you, the track’s texture coming up through the contact points and the suspension flowing over the rocks and roots, then this is the bike for you. No traction control button, just full-on sport mode - you're welcome.
Full on Evo from Orange means you have honed geometry with decades of development and thousands of miles of test riding. The Stage 6 Evo is an aggressive trail bike with 29” wheels, designed to take a 150mm fork, with 140mm of rear wheel travel. This bike is fast, fun, and more than happy to ride terrain more aggressive than its travel numbers would suggest.
With the emphasis placed firmly on geometry and the incredible performance benefits that brings, the Stage 6 Evo could be the only bike you’ll ever need. The frame features our new asymmetric swingarm construction which improves stiffness and strength, a more progressive suspension curve, offset bearing housing to clear the chain-ring, allowing for a more neutral pivot position. The bolt-thru rear axle now threads into a UDH gear hanger – we believe this is a promising new 'standard’ and we approve of. UDH is universally available, simple and robust – a great step forward.
Neat features that we’ve also added to the new Stage 6 Evo frame include accessory mounts under the top-tube, to support the oodles of new and innovative accessories coming onto the scene. When you find your favourite, you’ll be good to go.
And so, what's F.A.F? We'll let you work it out.

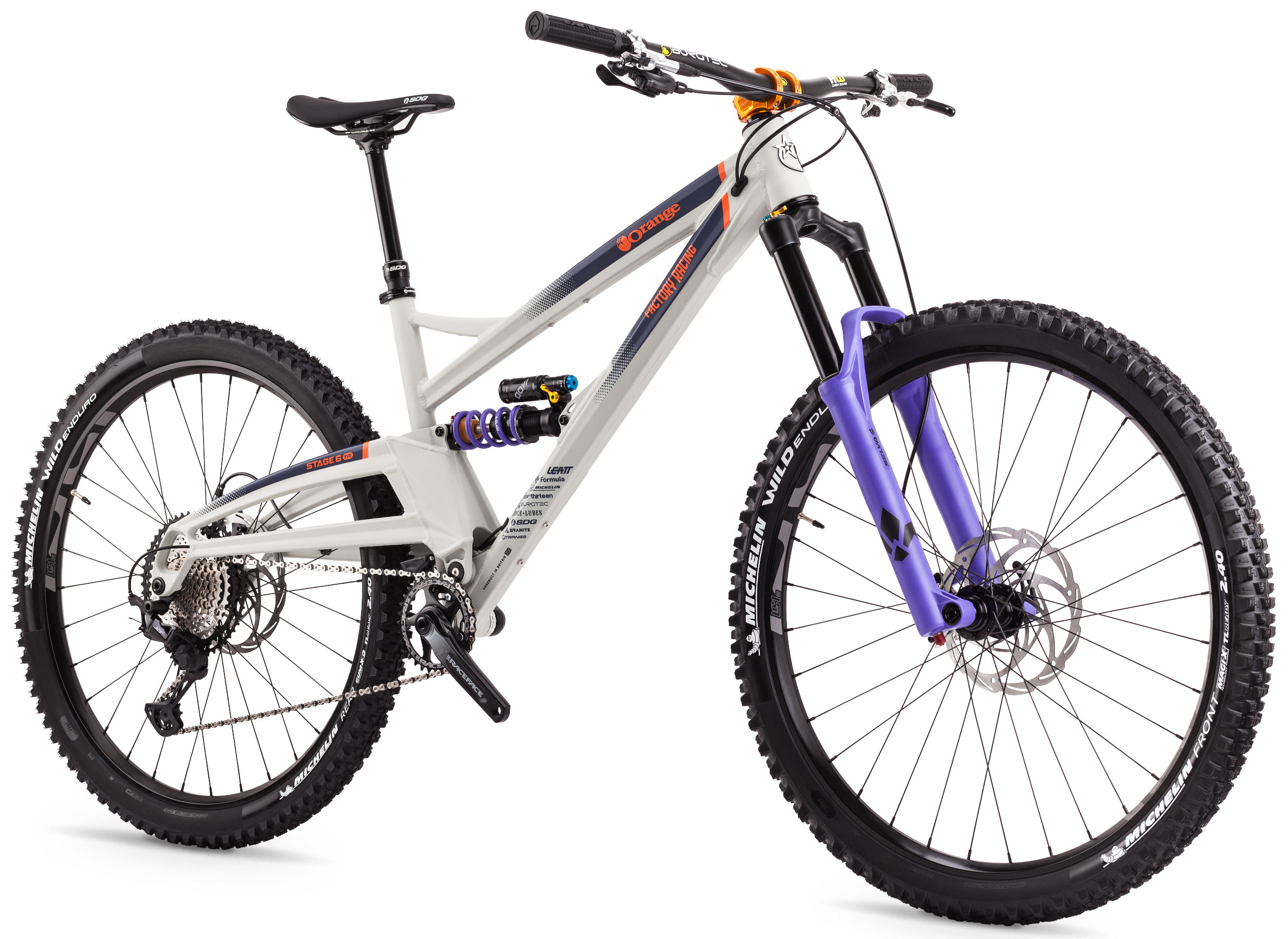

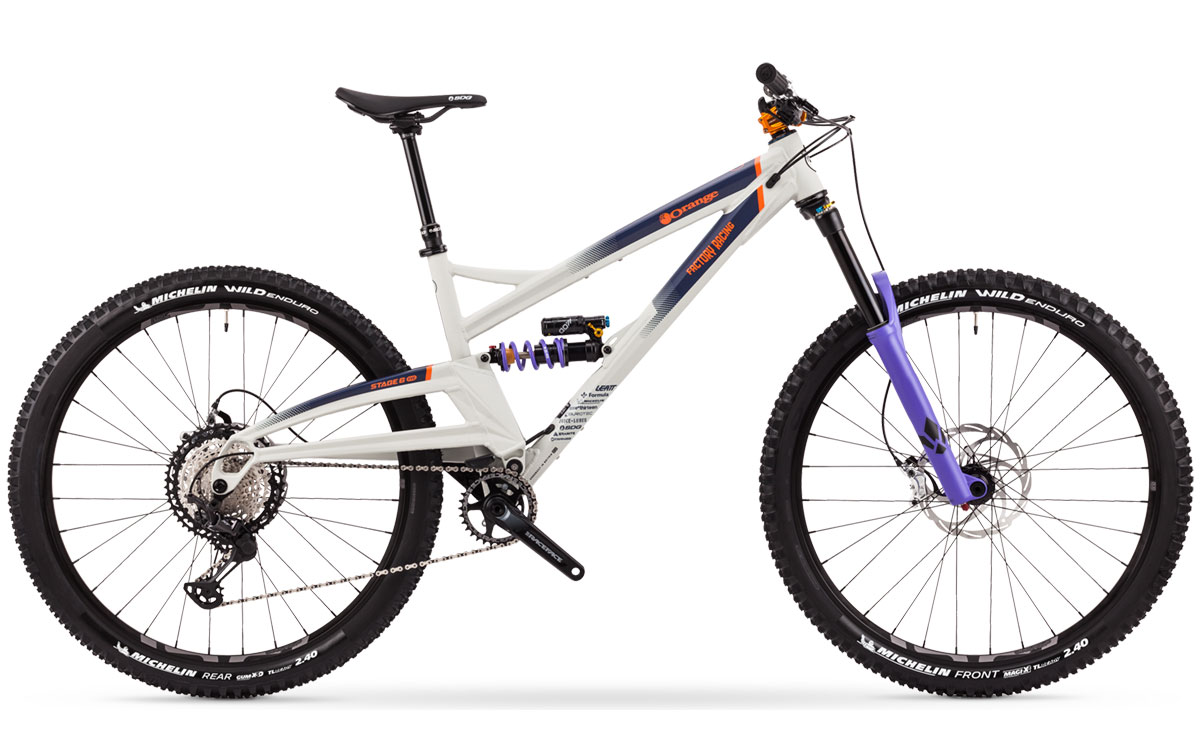

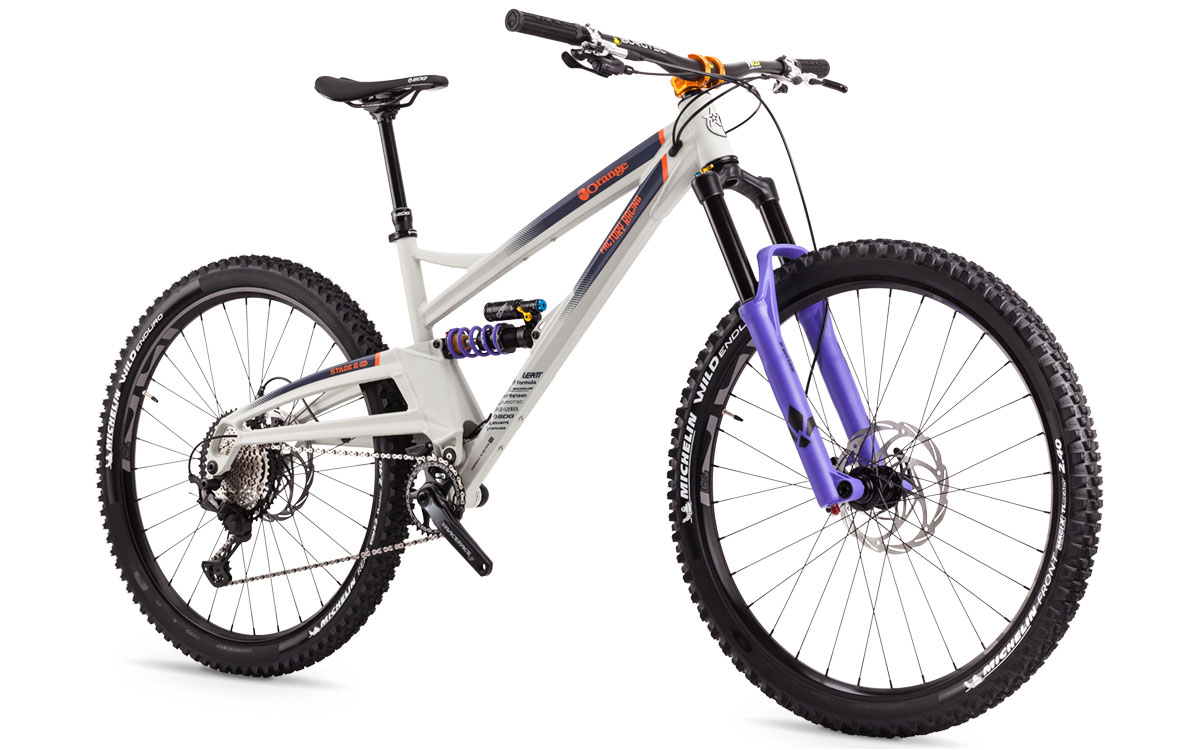

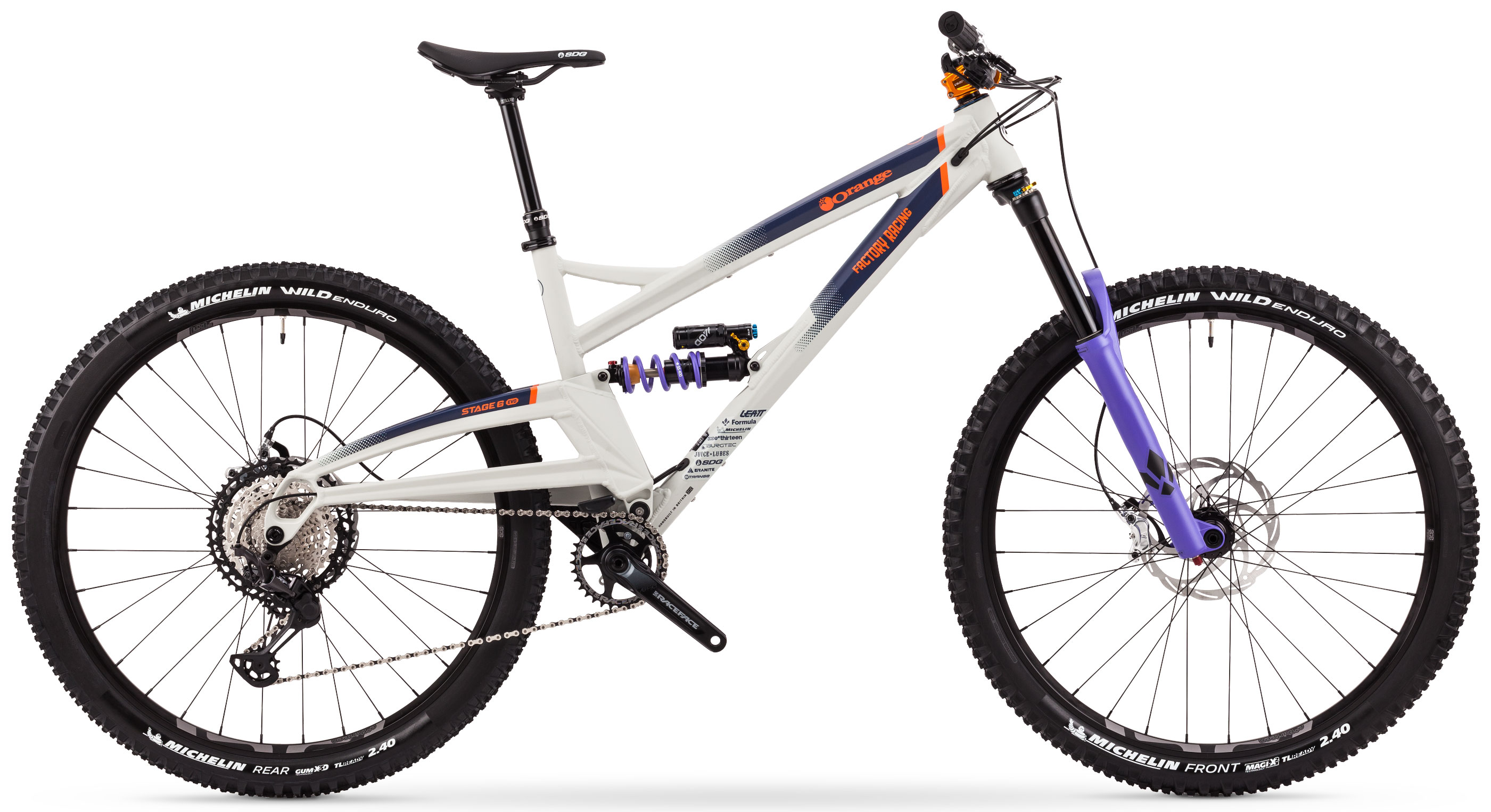

This is the Orange Factory Racing version, the very special Stage 6 Evo Team.
With a unique package of custom tuned components from our Factory Racing partners, this model builds on the brand new Stage 6 Evo concept.
The suspension is custom tuned and developed from our shakedown and testing sessions in Italy, working directly with the Formula factory technicians. Formula suspension is infinitley tunable and features like the ingeneous Neopos spacers and CTS (Compression Tuning System) quickly allow you to change the character of the suspension for any terrain.
It's not just the suspension where Formula components shine, their powerful Cura 4 brakes, provide incredible feel and stopping power.
E13 rims combined with Michelin Wild Enduro tyres provide sure-footed feel and unparalleled grip.
The finishing kit is no less impressive, featuring a cherry picked selection from Burgtec and SDG.
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 29. Rear wheel travel: 140.
| 6061-T6 Monocoque UK Formed Custom Aluminium Tubing | |||
| Frame Size | M | L | XL |
| Seat Tube Length | 17" | 18" | 19" |
| A. Head Angle | 64° | 64° | 64° |
| B. Seat Angle | 76° | 76° | 76° |
| C. Top Tube | 621 | 632 | 640 |
| D. Top Tube (effective) | 625 | 645 | 665 |
| E. BB Height (from ground) | 330 | 330 | 330 |
| BB height (from axles) | -40 | -40 | -40 |
| F. Chainstay | 467 | 467 | 467 |
| G. Head Tube | 110 | 110 | 120 |
| H. Wheel base | 1272 | 1291 | 1313 |
| J. Reach | 468 | 487 | 505 |
| K. Stack | 630 | 630 | 640 |
| T. Rear Travel | 140 | 140 | 140 |
| O. Fork Offset | 42 | 42 | 42 |
| Standover | 733 | 744 | 797 |
| Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 740 mm Ø tyre. | |||
| fork travel | |||||||||
|
|||||||||
| Fork Offset | 42 mm | ||||||||
| Shock Length | 210 mm x 55 mm | ||||||||
| Rear Hub | 12 x 148mm Boost | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seatclamp Ø | 34.9 mm | ||||||||
| Front Derailleur | N/A | ||||||||
| BB Shell | 73 mm ISCG05 | ||||||||
| Tapered Headset | Upper: ZS49/28.6 Lower: EC49/40 |
||||||||
| Downhill | ||
| Freeride | ||
| Enduro | ||
| All Mountain | ||
| Trail | ||
| XC Racing | ||
| Bike Packing | ||
| Gravel |
Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one. We've added some more explanation on sizing theory here: What size frame do I need?
Prices and Specifications are liable to change without notice.
